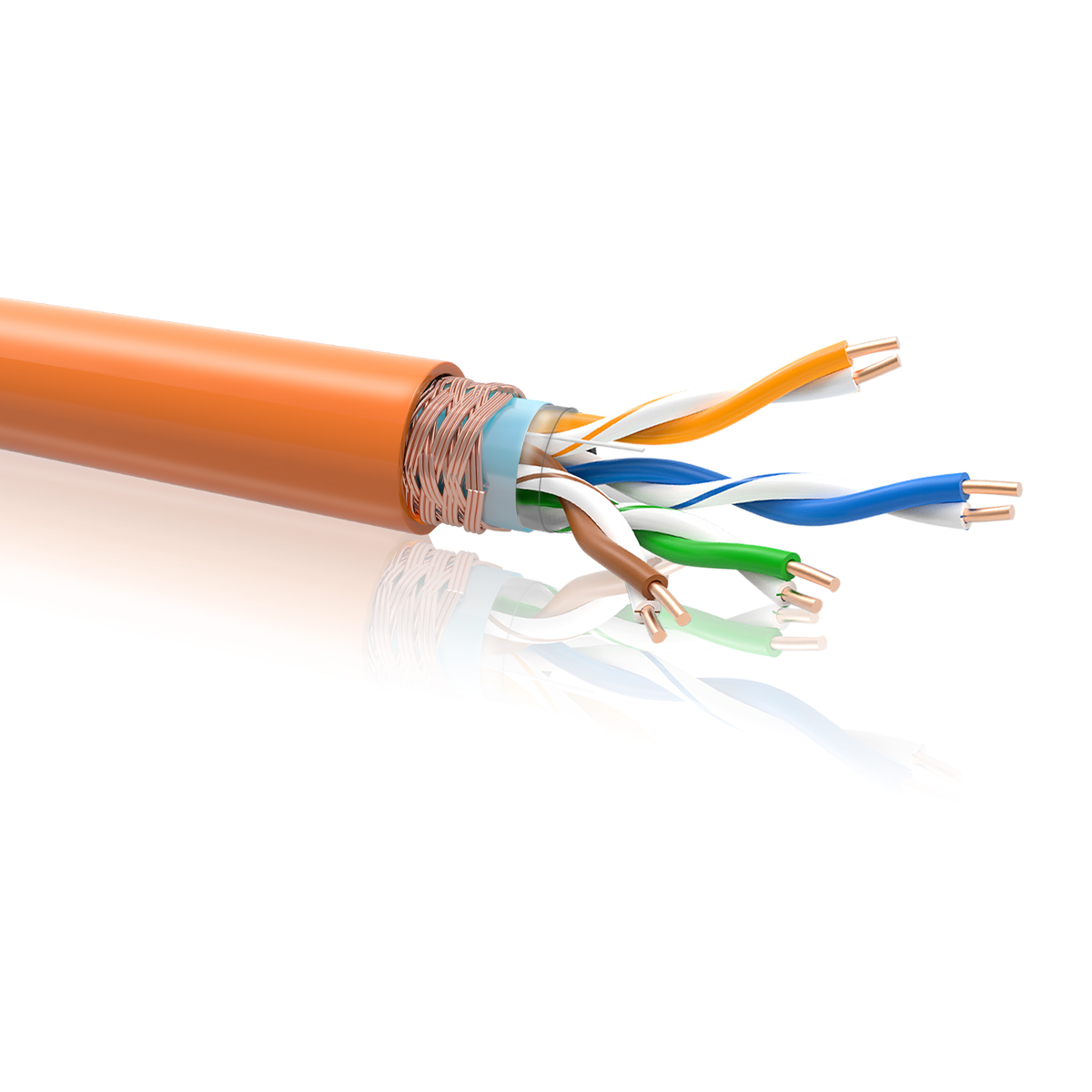

Cat.5e SF/UTP CABLE are designed to support high-speed network transmission, reference standards: GB/T 50312, YD/T 1019, ISO/IEC 11801, ANSI/TIA-568.2-D.
Reference standards: GB/T 50312, YD/T 1019, ISO/IEC 11801, ANSI/TIA-568.2-D
Line pairs: 4 pairs (blue/blue white, orange/orange white, green/green white, brown/brown white)
Conductor: 24AWG solid oxygen-free copper conductor, which meets the requirements of TR type soft round copper wire
Supported bandwidth: 100MHz

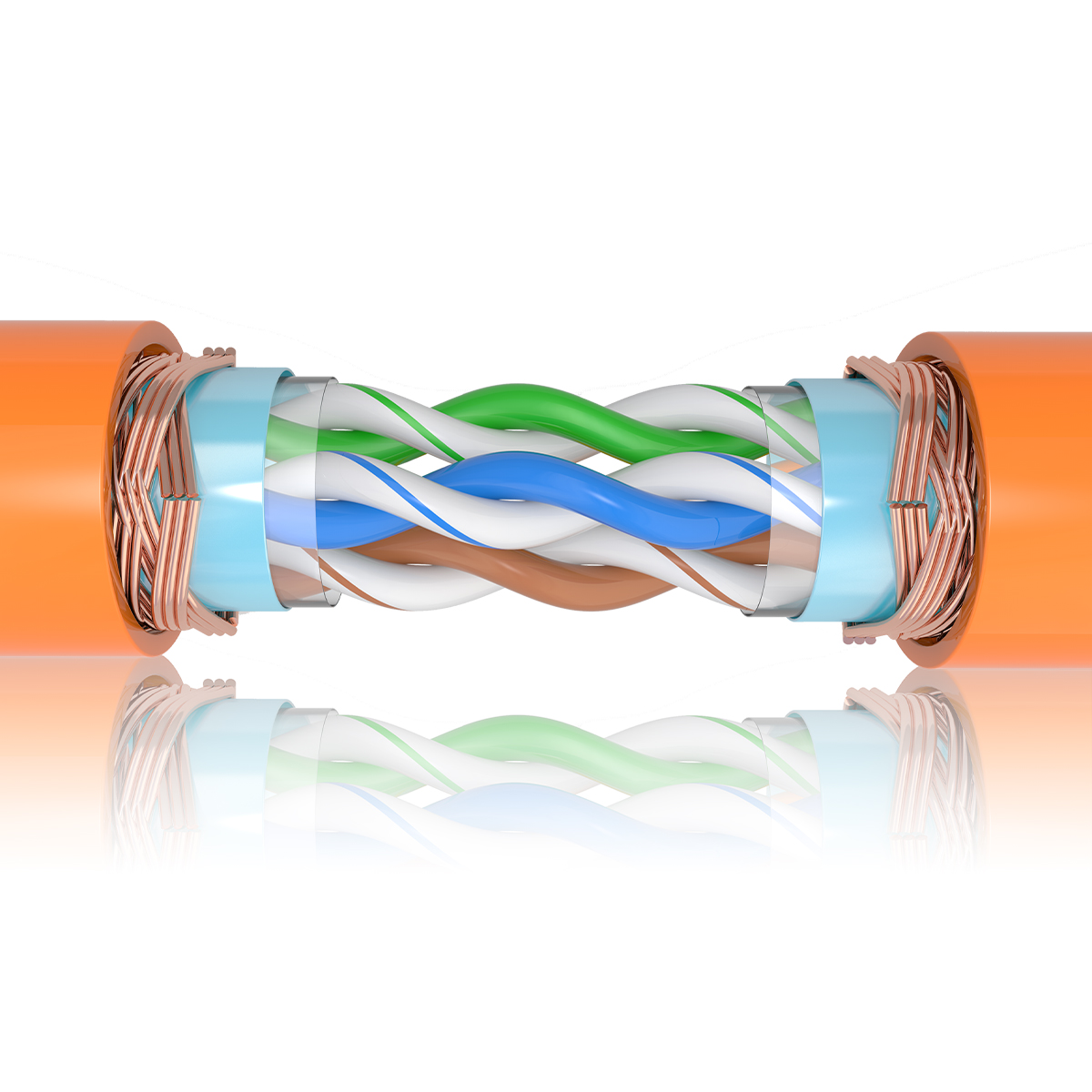

Shielding structure: SF/UTP (aluminum foil + copper net total shielding)
Discharge line: tinned round copper wire
Insulation material: High Density polyethylene (HDPE)
Tear rope: non-hygroscopic, non-metallic
Sheath: PVC
Sheath approximate outer diameter: 7.0±0.3mm
Operating temperature -20 ~ +60℃
Dc resistance (Max.) : 9.5Ω/100m
Characteristic impedance: 100±15Ω
Delay difference: ≤45ns/100m
Order information
Specifications | Description | Model Number | Units |
Cat.5e UTP CABLE | PVC sheath 305M | FGT-C5-L | box |
Cat.5e UTP CABLE PE | PE sheath 305M | FGT-C5-LP | box |
Cat.5e F/UTP CABLE | F/UTP PVC sheath 305M | FGT-C5-LFP | box |
Cat.5e SF/UTP CABLE | SF/UTP PVC sheath 305M | FGT-C5-LSFP | shaft |
Cat.5e UTP CABLE LSZH | UTP LSZH sheath 305M | FGT-C5-LLS | box |
Cat.5e UTP CABLE LSZH OUTDOOR | UTP outdoor LSZH sheath 305M | FGT-C5-LPLS | box |
Cat.5e F/UTP CABLE LSZH | F/UTP LSZH sheath 305M | FGT-C5-LFPLS | box |
Cat.5e SF/UTP CABLE LSZH | SF/UTP LSZH sheath 305M | FGT-C5-LSFPLS | shaft |
PS:
Length optional: 300-500M
Color optional:Red, yellow, blue, purple, black, white, gray, green.
